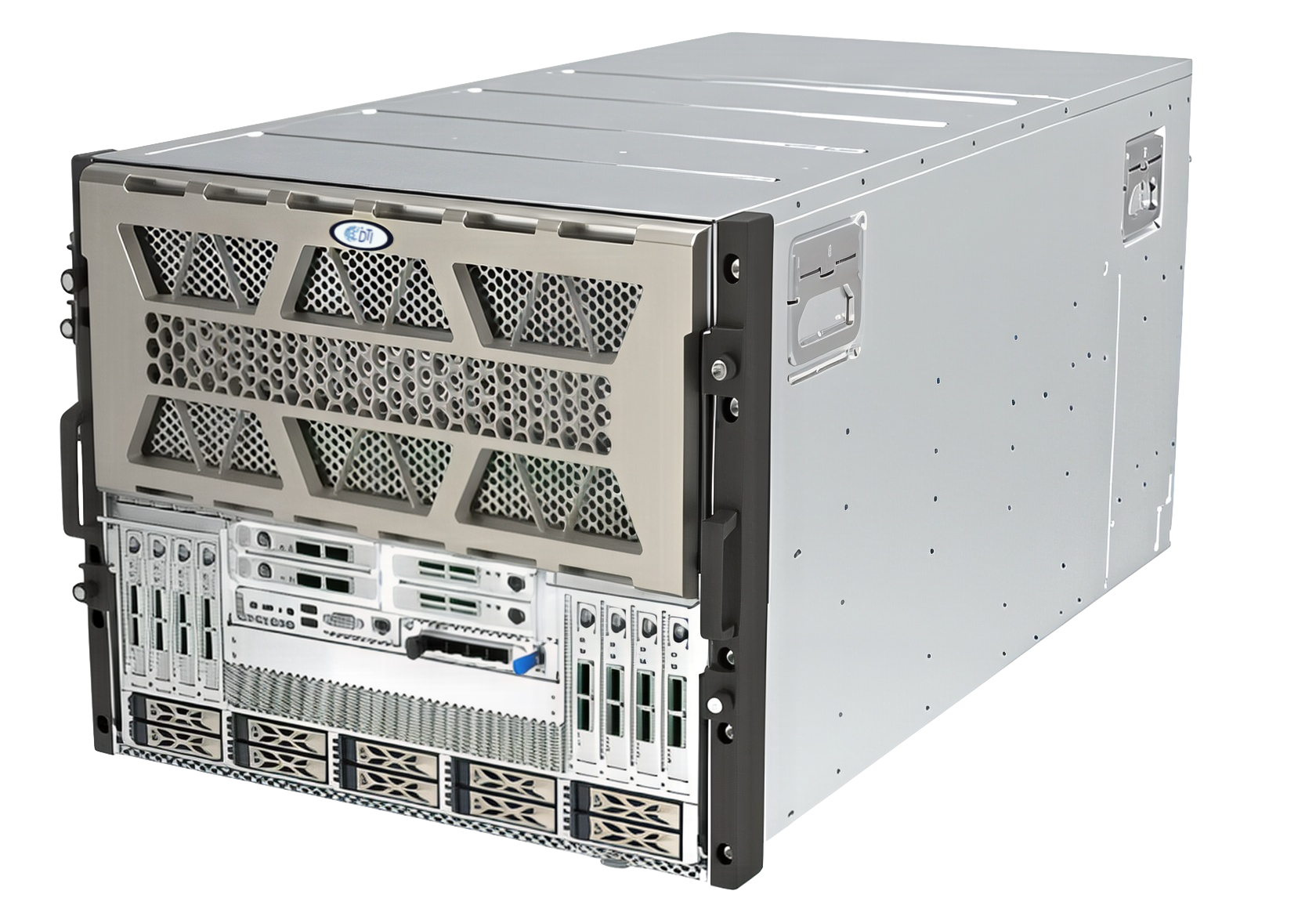

DT-NB8U02X00LC

8U B200/B300 AI Server

    • NVIDIA® B200 (DT-NB8U02) or B300 (DT-NB8U03) 8-GPU configuration with liquid cooling

    • Strong computing performance with up to 350W CPU and 32x DIMM DDR5 memories

    • Flexible x16 or x32 PCIe link bandwidth between CPU and Switch

    • 8x PCIe 5.0 x16 FHHL (from switch) + 2x PCIe 5.0 x16 FHHL slots (from CPU)

    • Full height SmartNIC supported

Technical Specifications

CPU

  • 2* Intel® Xeon 6700E/6500P/6700P Processor up to 350W

GPU

  • 8* HGX B200 liquid cooling

Memory

  • Up to 32* DDR5 DIMM Slot, support RDIMM up to 6400MT/s

Storage

  • 8* SFF NVMe slot (from switch)

  • 2* SFF SATA/Nvme slot (from CPU, SATA need Add-in RAID card)

  • Option: Internal: 2* 2280 M.2 slot(Add-in riser card)

PCIe Extension

  • Front PCIe Slot: 8* X16 FHHL/HHHL (from switch)

    Front PCIe Slot: 2* X16 FHHL (from CPU)

Enclosure management

  • BMC: AST2600, 1* dedicated RJ45 MGMT port

Cooling

  • 13* 8086 FANs, N+1 Redundant

Operating Temp

  • 5°C - 35°C

IO

PSU

  • Front IO

  • 2* USB3.0 Type-A Receptacle

  • 1* PWR BTN with 1* PWR Indicator

  • 1* Status LED

  • 1* VGA

  • 1* UART Port Over Type C

  • 1* UID button& LED

  • 1* GbE MGMT Port

  • 2* 185mm Redundant 2700W HVDC/AC Input, 12V Output PSUs

  • 8* 185mm Redundant 3200W HVDC/AC Input, 54V Output PSUs

Dimensions

  • 352mm (H) x 448mm (W) x 900mm (D)
